The MPPT Solar Boost Charge Controller Series is designed for solar charging systems that require a higher output voltage than the solar panel input voltage. Available in 600W and 1200W models, the controller supports a wide 12V–60V solar input range and provides 48V / 60V / 72V output options for different battery systems.
Using MPPT maximum power point tracking technology, the controller helps improve solar charging efficiency under changing sunlight conditions. It supports lead-acid, gel and lithium batteries, and features an LCD display for real-time operating information. A temperature-controlled cooling fan and replaceable fuse help improve system protection and reliability.
Key Features:

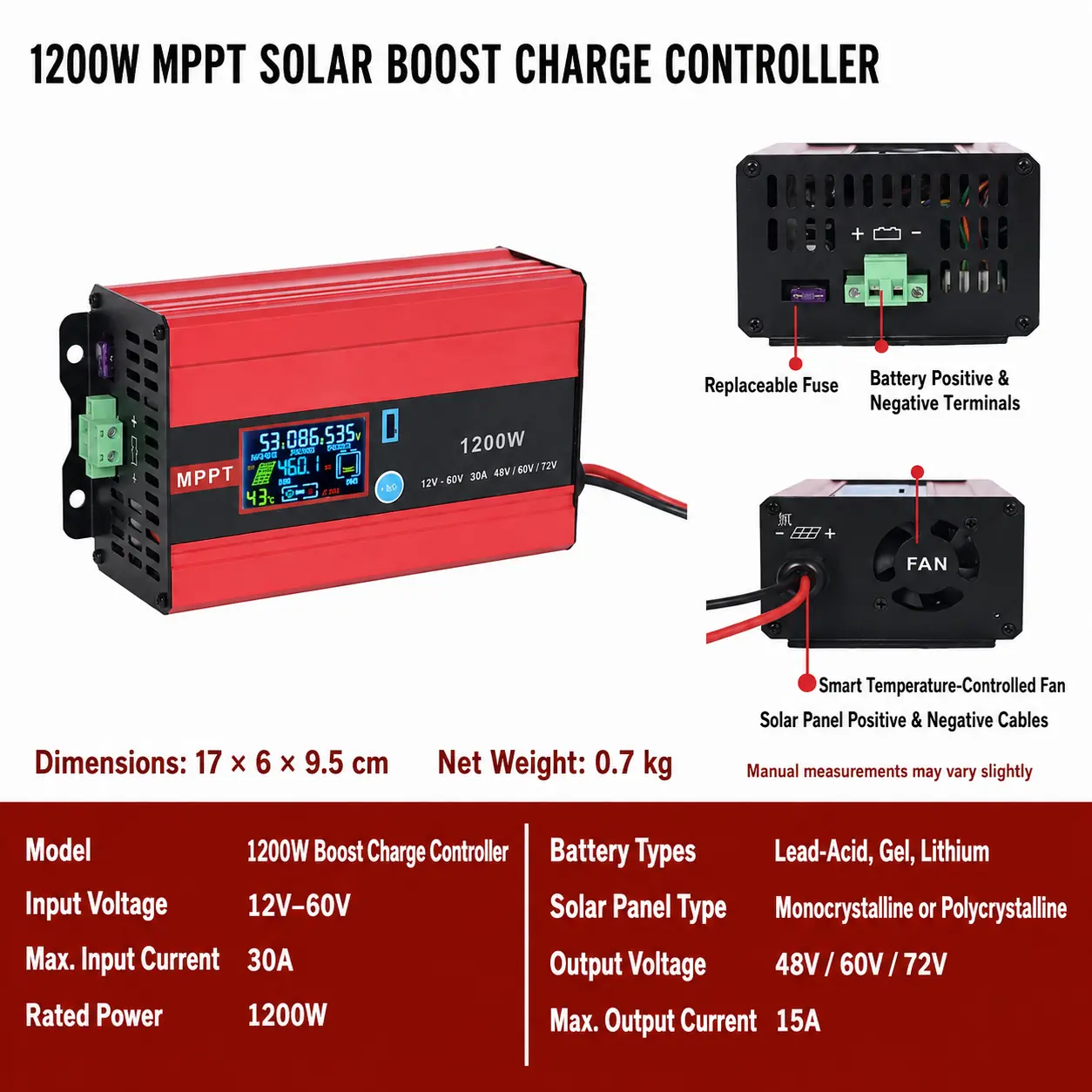

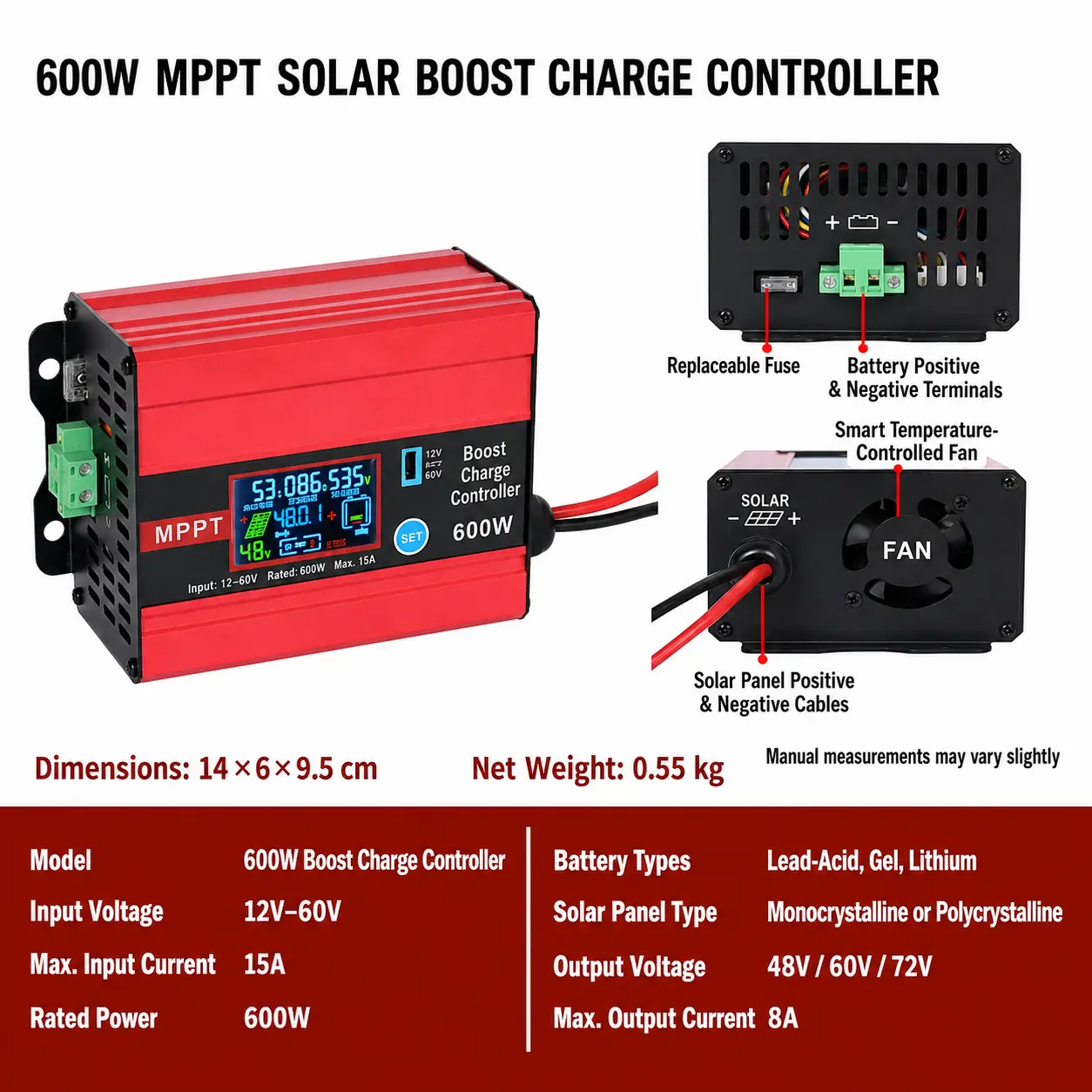

- 600W / 1200W boost MPPT controller options
- 12V–60V solar input voltage range
- 48V / 60V / 72V output voltage options
- MPPT maximum power point tracking
- 600W model: maximum input current 15A
- 1200W model: maximum input current 30A
- 600W model: maximum output current 8A
- 1200W model: maximum output current 15A
- Compatible with lead-acid, gel and lithium batteries
- LCD operating status display
- Smart temperature-controlled cooling fan
- Replaceable fuse protection
- Suitable for off-grid solar charging systems
Specification Details Controller Type MPPT Solar Boost Charge Controller Power Options 600W / 1200W Solar Input Voltage 12V–60V DC Output Voltage Options 48V / 60V / 72V DC 600W Max. Input Current 15A 600W Max. Output Current 8A 1200W Max. Input Current 30A 1200W Max. Output Current 15A Battery Compatibility Lead-Acid / Gel / Lithium Battery Solar Panel Compatibility Monocrystalline / Polycrystalline Display LCD Display Cooling Smart Temperature-Controlled Fan Fuse Replaceable Fuse 600W Size 14 × 6 × 9.5 cm 600W Weight Approx. 0.55 kg 1200W Size 17 × 6 × 9.5 cm 1200W Weight Approx. 0.70 kg Applications Off-Grid Solar Charging Systems
