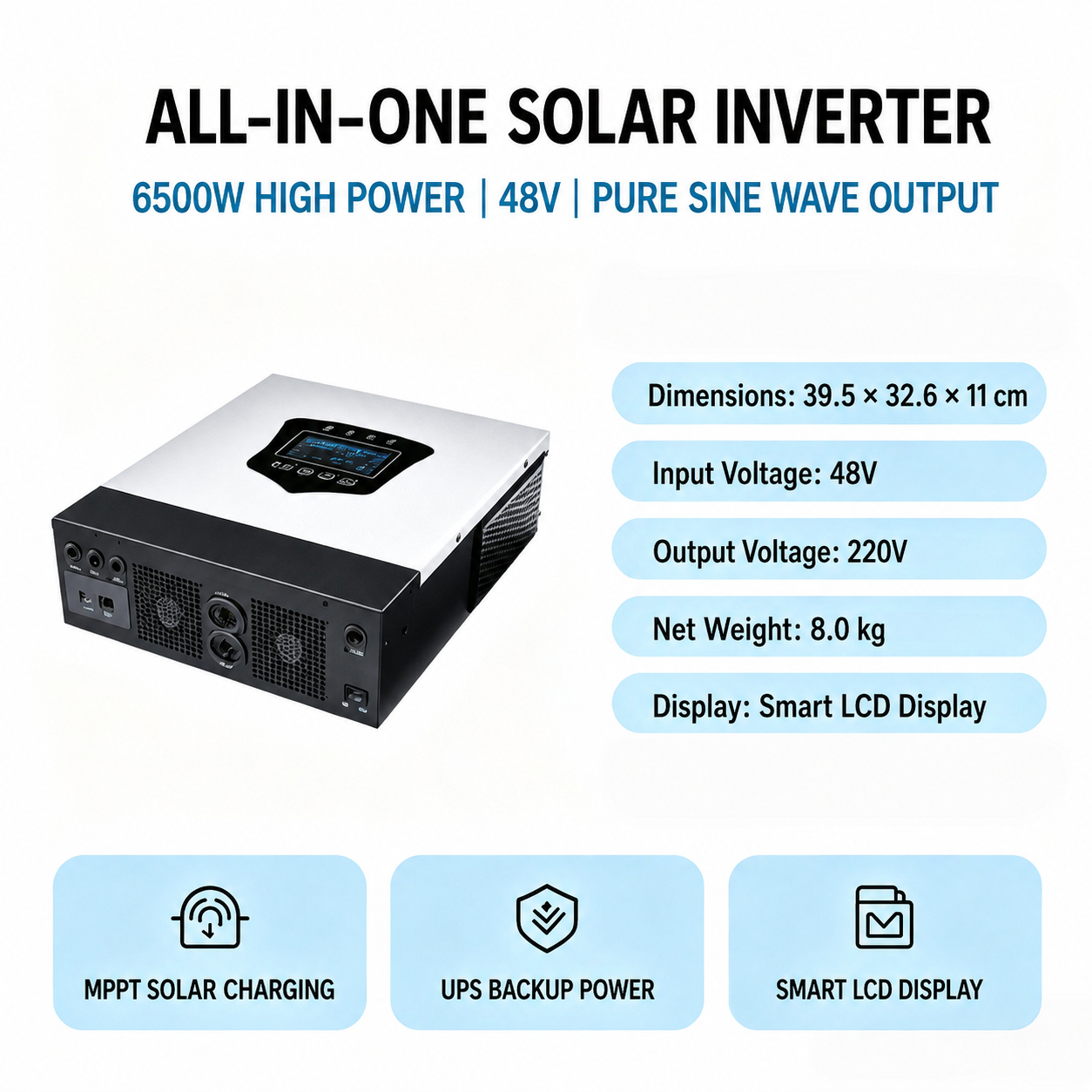

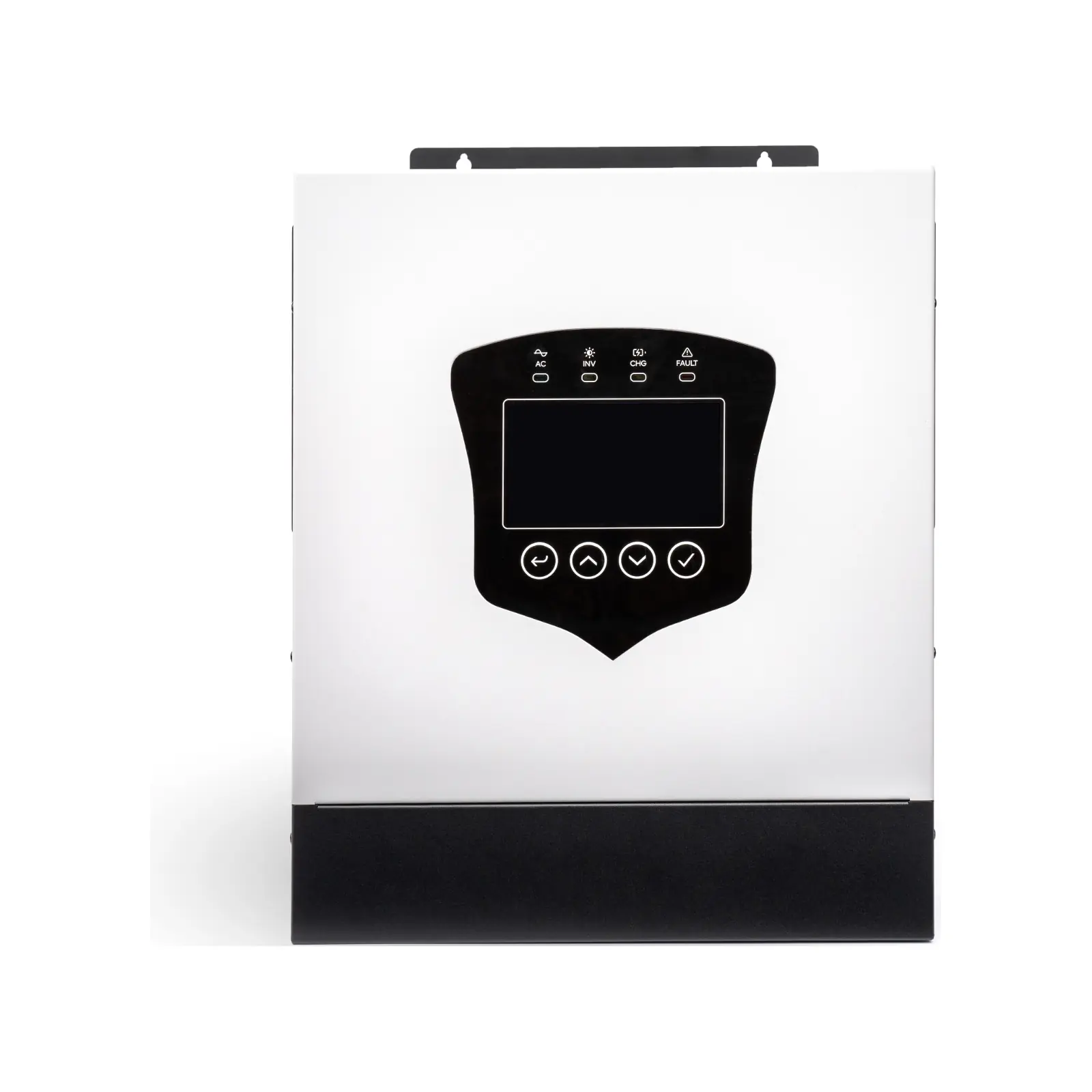

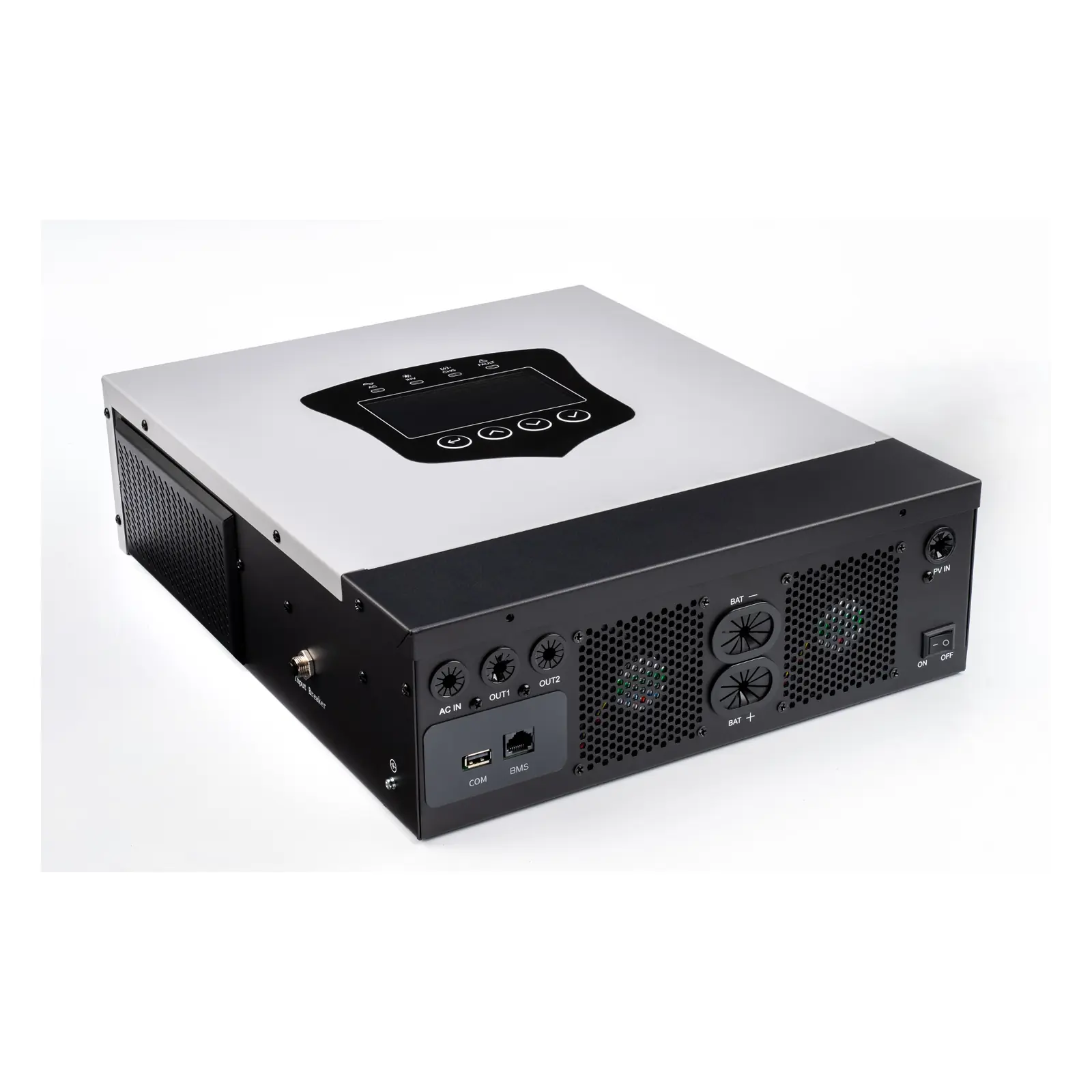

The 6.5kW 48V All-in-One Solar Inverter Charger integrates a pure sine wave inverter, MPPT solar charge controller and AC charging functions in one compact system. Designed for off-grid, backup power and hybrid solar applications, it supports flexible solar and utility power management for residential and commercial energy systems.
With a wide MPPT input range of 60–450V and adjustable charging current up to 120A, the system can efficiently manage solar energy across different installation requirements. It also supports batteryless operation, allowing compatible loads to run from solar and utility power without a connected battery.
Key Features:
- 6500W pure sine wave AC output
- 48V battery system
- 120A MPPT solar charging
- 60–450V MPPT input range

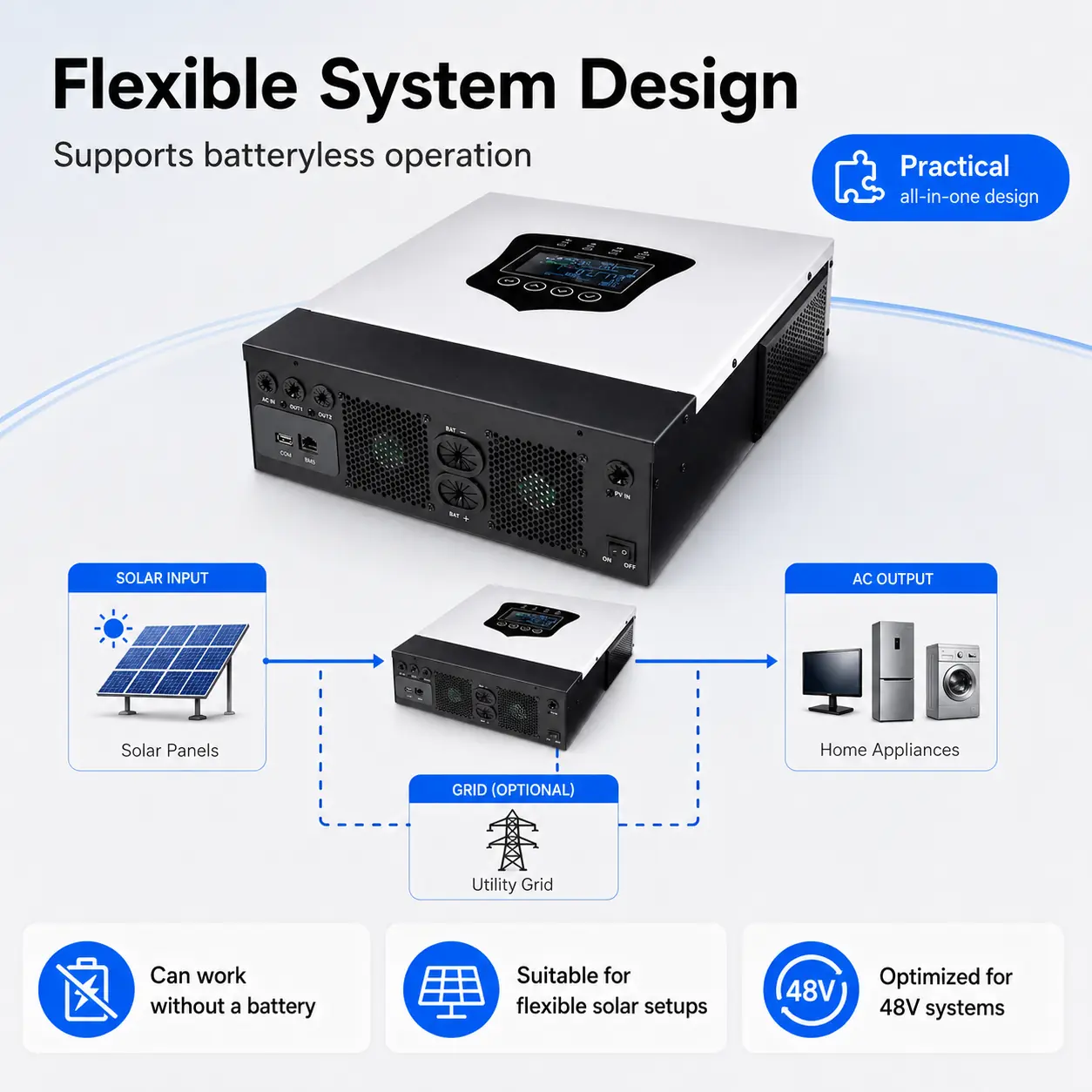

- Batteryless operation supported
- Solar + utility hybrid power management
- Dual AC output
- CAN / RS485 communication
- Multiple protection functions
- Suitable for off-grid and backup power systems
- OEM/ODM specifications available for different markets
Specification Details Rated Power 6500W Battery Voltage 48V Output Waveform Pure Sine Wave MPPT Input Range 60–450V DC MPPT Charging Current 2–120A Adjustable Batteryless Operation Supported AC Output Dual AC Output Communication CAN / RS485 Output Voltage 220V AC Output Frequency 50Hz / 60Hz Applications Off-Grid / Backup / Hybrid Solar Systems
